35TY 600RPM Permanent Magnet Synchronous Motor PMSM 12 Volt AC

Name: 35TY 600RPM Permanent Magnet Synchronous Motor PMSM 12 Volt AC
Brand: XM-Motor
Price: 1 USD

China 35TY 600RPM Permanent Magnet Synchronous Motor PMSM 12 Volt AC wholesale

Brand Name : XM-Motor

Model Number : 35TY

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10000PCS

Price : 1~10 USD/PC

Payment Terms : T/T,D/P,L/C

Supply Ability : 200000pcs/month

Delivery Time : 35DAYS

Packaging Details : CTN OR CUSTOMIZED

Name : Permanent Magnet Synchronous Motor

Material : black or customized

size : standard

packing : CTN or customized

Speed (RPM)/50Hz : 600

Voltage (V) AC : 12

Resistance (Ω) : 200

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : small stepper motor high torque

Construction : PM

colour : customized

color : customized

Contact Now

Permanent Magnet Synchronous Motors 35TY Speed (RPM)600 Resistance (Ω) Voltage (V) AC12

Product Description:

35TY

micro stepper motor awhich can be customized according to customer needs.
Motor basic step angle is18 derees, that is, 48 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach18 degrees, can be used in many requirements.

Precise control of the rotating position of the field.
Given the proper driving freque8ncy of the stepper motor can reach the determination of the speed and torque.

Model	Speed (RPM)/50Hz	Voltage (V) AC	Current (A)	Resistance (Ω)	Torque (g·cm)	Capacitance (μF)	Moment of Inertia (g/cm²)	Lead Wire Specification	Wiring Diagram	Outline Drawing
20TY20L01	600	12	0.06	200	5	5	1	UL 1061 28#	a	1
25TY24L	250	24	0.027	900	5	1	1	UL 1061 28#	a	2
25TY-500	500	24	0.064	375	5	4.7	1	UL 1061 28#	a	3
35TY-24500	500	24	0.12	200	27	4.7	7.5	UL 1430 26#	a	4
35TY22-03	250	105	0.07	1500	250	0.68	7.5	UL 1007 26#	a	5
42TY250-01	250	220	0.008	27000	90	0.47	7.5	UL 1007 26#	a	6
57TY250-01	250	24	0.16	150	70	10	35	UL 1007 26#	a	7
64TY03-A	375	220	0.098	2250	700	0.33	220	UL 1007 26#	a	8

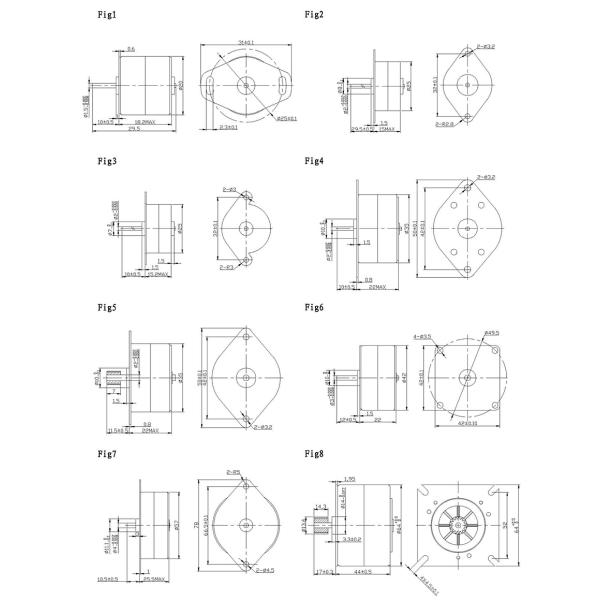

External View Drawing

35TY 600RPM Permanent Magnet Synchronous Motor PMSM 12 Volt AC
